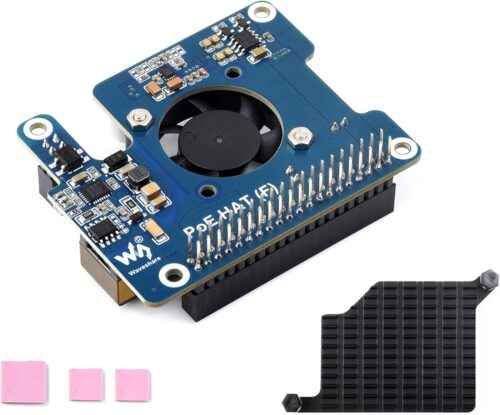

waveshare Power Over Ethernet HAT PoE HAT with Metal Heatsink for Raspberry Pi 5, Onboard Cooling Fan, Supports 802.3af/at Network, 12V and 5V Power Outputs Easy for More Peripherals
$28.79
Description
🌟 waveshare Power Over Ethernet HAT PoE HAT with Metal Heatsink for Raspberry Pi 5, Onboard Cooling Fan, Supports 802.3af/at Network, 12V and 5V Power Outputs Easy for More Peripherals – Your Perfect Choice!
🔥 Why Choose waveshare Power Over Ethernet HAT PoE HAT with Metal Heatsink for Raspberry Pi 5, Onboard Cooling Fan, Supports 802.3af/at Network, 12V and 5V Power Outputs Easy for More Peripherals?
✔ Brand: waveshare
✔ ASIN: B0CR41XZ15
✔ Category: Electronics > Computers & Accessories > Computer Components > Single Board Computers
✔ Customer Rating: ⭐ 4.5 / 5
✨ Product Features & Benefits
Product Description
Power Over Ethernet HAT (F) For Raspberry Pi 5, High Power, Onboard Cooling Fan, With Metal Heatsink, Supports 802.3af/at network standard
Features at a glance
The PoE HAT (F) is a 802.3af/at-compliant Power Over Ethernet accessory for Raspberry Pi 5. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
Standard Raspberry Pi 40PIN GPIO stackable header, compatible with Raspberry Pi 5, allows connecting other HATsPoE (Power Over Ethernet) capability，IEEE 802.3af/at-compliantFully isolated switched-mode power supply (SMPS)Onboard high speed active cooling fan, with metal heatsink, better heat dissipationProviding both network connection and power supply for your Raspberry Pi in one cableOnboard 5V & 12V header outputs: 5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power). Be able to power extra devices while providing stable power to Raspberry PiOnboard MP8759GD buck chip: Incorporates original voltage buck chip, providing up to 5A under sufficient heat dissipation condition
Specifications
PoE Power Input 37V ~ 57V DC in Power Output GPIO header: 5V 4.5A (MAX); 2P header: 12V 2A (MAX) Network Standard IEEE 802.3af/at PoE Dimensions 56.5 × 70.0mm
How to Install: Attach the thermal tapes first, then install metal heatsink and fix the PoE HAT
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.4 out of 5 stars 36
4.0 out of 5 stars 24
4.2 out of 5 stars 116
3.9 out of 5 stars 17
4.2 out of 5 stars 72
Price
$28.79$28.79 $23.03$23.03 $19.19$19.19 $24.95$24.95 $26.87$26.87
Supported Pi
for Raspberry Pi 5 for Raspberry Pi 5 for Raspberry Pi 3B+/4B for Raspberry Pi 3B+/4B for Raspberry Pi 3B+/4B
Network Standard
IEEE 802.3af/at PoE IEEE 802.3af/at PoE IEEE 802.3af PoE IEEE 802.3af/at PoE 802.3af PoE
PoE Power Input
37V ~ 57V DC in 38V ~ 57V DC in 37V ~ 57V DC in 37V ~ 57V DC in 37V ~ 57V DC in
PoE Power Output
GPIO header: 5V 4.5A (MAX); 2P header: 12V 2A (MAX) GPIO header: 5V 5A (MAX) 5V 2.5A DC out USB-A: 5V 4A (MAX); 2P header: 12V 2A (MAX) 5V 2.5A DC out
Feature
With Metal Heatsink Compatible With Pi 5 Official Case, High Power Compatible With Pi 3B+/4B Official Case High Power, cost effective with OLED display, cost effective
Power Over Ethernet HAT (F) for Raspberry Pi 5, With Metal Heatsink, Onboard Cooling Fan, Supports 802.3af/at network standard
Based on standard Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi 5. Pin headers on the top for easy access to other Raspberry Pi expansion boards
Power Over Ethernet — providing both network connection and power supply for your Raspberry Pi in one cable
Onboard 5V & 12V header outputs — 5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power). Be able to power extra devices while providing stable power to Raspberry Pi
Onboard MP8759GD buck chip —Incorporates original voltage buck chip, providing up to 5A under sufficient heat dissipation condition
Online Development Resources /User Manual: bit.ly/3H5wFyZ
💡 Detailed Specifications:
| Product Dimensions | 2.76 x 2.22 x 2.76 inches |
|---|---|
| Item Weight | 2.89 ounces |
| Manufacturer | Waveshare |
| ASIN | B0CR41XZ15 |
| Customer Reviews | 4.4 out of 5 stars |
| Best Sellers Rank | #192 in Single Board Computers (Computers & Accessories) |
| Date First Available | December 28, 2023 |
Warranty & Support
🛒 Current Price: $28.79 ($)
🚀 List Price: $28.79 (You Save $28.79!)
📅 Last Price Update: Feb 16, 2025 22:29:09 UTC
🎯 Why Buy This Product?
✅ High Quality & Trusted Brand – waveshare
✅ Affordable Pricing – Best deal at $28.79
📦 Manufacturer Info:
Power Over Ethernet HAT (F) For Raspberry Pi 5, High Power, Onboard Cooling Fan, With Metal Heatsink, Supports 802.3af/at network standard
Features at a glance
The PoE HAT (F) is a 802.3af/at-compliant Power Over Ethernet accessory for Raspberry Pi 5. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
- Standard Raspberry Pi 40PIN GPIO stackable header, compatible with Raspberry Pi 5, allows connecting other HATs
- PoE (Power Over Ethernet) capability，IEEE 802.3af/at-compliant
- Fully isolated switched-mode power supply (SMPS)
- Onboard high speed active cooling fan, with metal heatsink, better heat dissipation
- Providing both network connection and power supply for your Raspberry Pi in one cable
- Onboard 5V & 12V header outputs: 5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power). Be able to power extra devices while providing stable power to Raspberry Pi
- Onboard MP8759GD buck chip: Incorporates original voltage buck chip, providing up to 5A under sufficient heat dissipation condition
How to Install: Attach the thermal tapes first, then install metal heatsink and fix the PoE HAT
PoE HAT (F)
|
PoE HAT (G)
|
PoE HAT (E)
|
PoE HAT (C)
|
PoE HAT (B)
| |
|---|---|---|---|---|---|
|
|
|
|
| |
| Customer Reviews |
36 |
24 |
116 |
17 |
72 |
| Price | $28.79 | $23.03 | $19.19 | $24.95 | $26.87 |
| Supported Pi | for Raspberry Pi 5 | for Raspberry Pi 5 | for Raspberry Pi 3B+/4B | for Raspberry Pi 3B+/4B | for Raspberry Pi 3B+/4B |
| Network Standard | IEEE 802.3af/at PoE | IEEE 802.3af/at PoE | IEEE 802.3af PoE | IEEE 802.3af/at PoE | 802.3af PoE |
| PoE Power Input | 37V ~ 57V DC in | 38V ~ 57V DC in | 37V ~ 57V DC in | 37V ~ 57V DC in | 37V ~ 57V DC in |
| PoE Power Output | GPIO header: 5V 4.5A (MAX); 2P header: 12V 2A (MAX) | GPIO header: 5V 5A (MAX) | 5V 2.5A DC out | USB-A: 5V 4A (MAX); 2P header: 12V 2A (MAX) | 5V 2.5A DC out |
| Feature | With Metal Heatsink | Compatible With Pi 5 Official Case, High Power | Compatible With Pi 3B+/4B Official Case | High Power, cost effective | with OLED display, cost effective |
