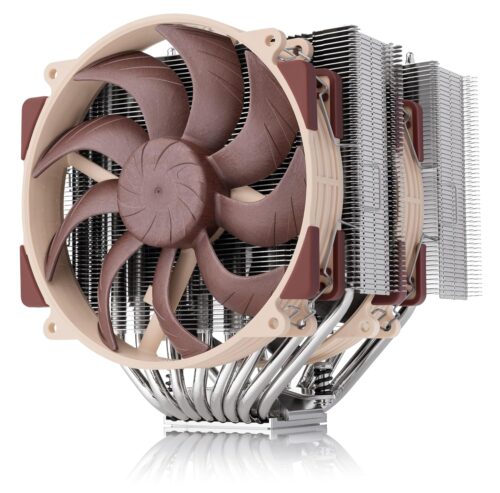

Noctua NH-D15 G2 LBC, Dual Tower CPU Cooler, Specialised Low Base Convexity Version for AMD AM5/AM4 (Brown)

🌟 Noctua NH-D15 G2 LBC, Dual Tower CPU Cooler, Specialised Low Base Convexity Version for AMD AM5/AM4 (Brown) – Your Perfect Choice!

🔥 Why Choose Noctua NH-D15 G2 LBC, Dual Tower CPU Cooler, Specialised Low Base Convexity Version for AMD AM5/AM4 (Brown)?
✔ Brand: Noctua
✔ ASIN: B0D5B5B821
✔ Category: Electronics > Computers & Accessories > Computer Components > Internal Components > Fans & Cooling > CPU Cooling Fans
✔ Customer Rating: ⭐ 5 / 5

✨ Product Features & Benefits

Product Description

The NH-D15 G2 is the further improved second generation of Noctua’s iconic NH-D15. With its state-of-the-art, speed-offset NF-A14x25r G2 PWM fans, eight heatpipes and asymmetrical fin-stacks that have been carefully fine-tuned to work in tandem with the new fans, it achieves even better quiet cooling performance than its award-winning predecessor. As such, the G2 version is a true flagship model that continues the legacy of the original NH-D15 by pushing the boundaries of air cooling and rivalling the efficiency of many all-in-one (AIO) water cooling solutions. Optimised for relatively flat CPUs, the specialised Low Base Convexity (LBC) version provides excellent contact quality on AMD’s AM5 processors, even if the included offset mounting option isn’t used. In addition to its further improved performance, the NH-D15 G2 also offers enhanced compatibility thanks to an offset construction that allows it to clear the top PCIe x16 slot on most current motherboards. Last but not least, the G2 version has been upgraded to the Torx-based SecuFirm2+ multi-socket mounting system with included NM-SD1 screwdriver as well as to Noctua’s superior NT-H2 thermal compound. In short, the NH-D15 G2 has been further refined in virtually all respects from the heatsink and the fans all the way down to the mounting, thermal paste and accessory package, making it an ideal choice for customers who demand the best of the best in air cooling.

More performance, smaller size

Thanks to the higher fin density made possible by the new NF-A14x25r G2 fans as well as the asymmetrical fin-stacks and a slightly smaller gap between the stacks, the G2 version combines improved performance with a slightly smaller size compared to the original NH-D15 (9mm less heatsink depth, same heatsink width, same total height including fans).

8 heatpipes for superior performance at higher heat-loads

The NH-D15 G2 utilises eight instead of six heatpipes compared to the original NH-D15. The increased thermal capacity of the extra heatpipes is especially helpful at extreme heat-loads such as 250W and beyond, where the performance boost over the original NH-D15 is the biggest.

Two NF-A14x25r G2 fans

Noctua’s next-generation NF-A14x25r G2 fans set a new benchmark for performance-to-noise efficiency in round-frame 140mm fans. Their superb acoustics as well as their superior airflow and pressure characteristics are one of the cornerstones that enable the NH-D15 G2 to push beyond its legendary predecessor.

Specialised LBC (Low Base Convexity) version

The Low Base Convexity (LBC) version achieves optimal contact quality on relatively flat CPUs. As such, it is ideal for AM5 even if the offset mounting isn’t used or if users seek to combine the lowest possible CCD temperatures with the lowest possible IOD temperatures. The LBC version is also recommended for AM4, LGA2066 and LGA2011 (-3) (free-of-charge NM-i20xx mounting kit required), direct die applications as well as CPUs that have been lapped flat or outfitted with flat custom heat-spreaders.

Measurements Height (without fan): 168 mm Width (without fan): 150 mm Depth (without fan): 127 mm Height (with fan): 168 mm Width (with fan): 150 mm Depth (with fan): 152 mm Weight (without fan): 1180 g Weight (with fan/s): 1525 g Materials

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

Cooler Specifications Scope of delivery

2x NF-A14x25r G2 PWM premium fan2x NA-RC14 Low-Noise Adaptor (L.N.A.)NA-YC1 4-pin PWM splitter cableNT-H2 high-grade thermal compoundNA-TPG1 thermal paste guard for AM5NA-CW1 cleaning wipeSecuFirm2+ multi-socket mounting system4x NM-ISW1 washers for LGA1700NM-SD1 Torx T20 screwdriverNoctua metal case-badge

Next-generation performance

For an entire decade, the original NH-D15 was widely regarded as the best air cooler on the market. The G2 version continues this legacy by further improving the renowned quiet cooling performance of its iconic predecessor.

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.8 out of 5 stars 113

4.5 out of 5 stars 37

4.8 out of 5 stars 95

4.8 out of 5 stars 11,226

4.8 out of 5 stars 13,188

Price

$149.95$149.95 $149.95$149.95 $149.95$149.95 $109.95$109.95 $119.95$119.95

LGA1851, LGA1700

✓

✓
Compatible but not recommended
✓

✓

LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156)

✓

✓
Compatible but not recommended
✓

✓

LGA20xx Square ILM
with NM-i20xx with NM-i20xx with NM-i20xx with NM-i20xx with NM-i20xx

LGA20xx Narrow ILM
X X X X X

LGA4189
X X X X X

LGA4677
X X X X X

AM5

✓
Compatible but not recommended
✓

✓

✓

AM4

✓
Compatible but not recommended
✓

✓

✓

TR4, SP3, sTRX4, sWRX8
X X X X X

sTR5, SP6
X X X X X

Product Dimensions ‏ : ‎ 5.98 x 5.91 x 6.61 inches; 3.37 Pounds
Item model number ‏ : ‎ NH-D15G2LBC
Date First Available ‏ : ‎ June 30, 2024
Manufacturer ‏ : ‎ Noctua
ASIN ‏ : ‎ B0D5B5B821
Country of Origin ‏ : ‎ Taiwan
Further improved second generation of the iconic, award-winning NH-D15: Even better quiet cooling performance thanks to 8 heatpipes, 20% more surface area and novel NF-A14x25r G2 fans!
Specialised LBC (Low Base Convexity) version for optimal contact quality on relatively flat CPUs such as AMD AM5 (even without offset mounting), AM4 or Intel LGA2066 (optional NM-i20xx kit required), deluxe choice for Ryzen 9950X, 9900X, 9700X, 9600X, etc.
Caution: Not recommended for use on Intel LGA1700, LGA1200 or LGA115x! Please choose the regular NH-D15 G2 or the NH-D15 G2 HBC (High Base Convexity) version for these platforms!
Two state-of-the-art NF-A14x25r G2 140mm fans with speed-offset for acoustic fine-tuning, Low-Noise Adaptors and PWM for automatic speed control: maximum efficiency under load, near silent at idle!
Offset design with recessed lower fins clears top PCIe x16 on most current motherboards and offers 59mm RAM clearance in single fan mode (32mm with both fans, see Noctua Compatibility Centre)

💡 Detailed Specifications:

🛒 Current Price: $149.95 ($)
🚀 List Price: $149.95 (You Save $149.95!)
📅 Last Price Update: Feb 16, 2025 10:32:16 UTC

🎯 Why Buy This Product?
✅ High Quality & Trusted Brand – Noctua
✅ Affordable Pricing – Best deal at $149.95

📦 Manufacturer Info:

The NH-D15 G2 is the further improved second generation of Noctua’s iconic NH-D15. With its state-of-the-art, speed-offset NF-A14x25r G2 PWM fans, eight heatpipes and asymmetrical fin-stacks that have been carefully fine-tuned to work in tandem with the new fans, it achieves even better quiet cooling performance than its award-winning predecessor. As such, the G2 version is a true flagship model that continues the legacy of the original NH-D15 by pushing the boundaries of air cooling and rivalling the efficiency of many all-in-one (AIO) water cooling solutions. Optimised for relatively flat CPUs, the specialised Low Base Convexity (LBC) version provides excellent contact quality on AMD’s AM5 processors, even if the included offset mounting option isn’t used. In addition to its further improved performance, the NH-D15 G2 also offers enhanced compatibility thanks to an offset construction that allows it to clear the top PCIe x16 slot on most current motherboards. Last but not least, the G2 version has been upgraded to the Torx-based SecuFirm2+ multi-socket mounting system with included NM-SD1 screwdriver as well as to Noctua’s superior NT-H2 thermal compound. In short, the NH-D15 G2 has been further refined in virtually all respects from the heatsink and the fans all the way down to the mounting, thermal paste and accessory package, making it an ideal choice for customers who demand the best of the best in air cooling.

More performance, smaller size

Thanks to the higher fin density made possible by the new NF-A14x25r G2 fans as well as the asymmetrical fin-stacks and a slightly smaller gap between the stacks, the G2 version combines improved performance with a slightly smaller size compared to the original NH-D15 (9mm less heatsink depth, same heatsink width, same total height including fans).

8 heatpipes for superior performance at higher heat-loads

The NH-D15 G2 utilises eight instead of six heatpipes compared to the original NH-D15. The increased thermal capacity of the extra heatpipes is especially helpful at extreme heat-loads such as 250W and beyond, where the performance boost over the original NH-D15 is the biggest.

Two NF-A14x25r G2 fans

Noctua’s next-generation NF-A14x25r G2 fans set a new benchmark for performance-to-noise efficiency in round-frame 140mm fans. Their superb acoustics as well as their superior airflow and pressure characteristics are one of the cornerstones that enable the NH-D15 G2 to push beyond its legendary predecessor.

Specialised LBC (Low Base Convexity) version

The Low Base Convexity (LBC) version achieves optimal contact quality on relatively flat CPUs. As such, it is ideal for AM5 even if the offset mounting isn’t used or if users seek to combine the lowest possible CCD temperatures with the lowest possible IOD temperatures. The LBC version is also recommended for AM4, LGA2066 and LGA2011 (-3) (free-of-charge NM-i20xx mounting kit required), direct die applications as well as CPUs that have been lapped flat or outfitted with flat custom heat-spreaders.

Measurements

• Height (without fan): 168 mm
• Width (without fan): 150 mm
• Depth (without fan): 127 mm
• Height (with fan): 168 mm
• Width (with fan): 150 mm
• Depth (with fan): 152 mm
• Weight (without fan): 1180 g
• Weight (with fan/s): 1525 g

Materials

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

Cooler Specifications

Scope of delivery

• 2x NF-A14x25r G2 PWM premium fan
• 2x NA-RC14 Low-Noise Adaptor (L.N.A.)
• NA-YC1 4-pin PWM splitter cable
• NT-H2 high-grade thermal compound
• NA-TPG1 thermal paste guard for AM5
• NA-CW1 cleaning wipe
• SecuFirm2+ multi-socket mounting system
• 4x NM-ISW1 washers for LGA1700
• NM-SD1 Torx T20 screwdriver
• Noctua metal case-badge

Next-generation performance

For an entire decade, the original NH-D15 was widely regarded as the best air cooler on the market. The G2 version continues this legacy by further improving the renowned quiet cooling performance of its iconic predecessor.

	NH-D15 G2	NH-D15 G2 HBC	NH-D15 G2 LBC	NH-D15	NH-D15 chromax.black
	Add to Cart	Add to Cart	Add to Cart	Add to Cart	Add to Cart
Customer Reviews	4.8 out of 5 stars 113	4.5 out of 5 stars 37	4.8 out of 5 stars 95	4.8 out of 5 stars 11,226	4.8 out of 5 stars 13,188
Price	$149.95$149.95	$149.95$149.95	$149.95$149.95	$109.95$109.95	$119.95$119.95
LGA1851, LGA1700	✓	✓	Compatible but not recommended	✓	✓
LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156)	✓	✓	Compatible but not recommended	✓	✓
LGA20xx Square ILM	with NM-i20xx	with NM-i20xx	with NM-i20xx	with NM-i20xx	with NM-i20xx
LGA20xx Narrow ILM	X	X	X	X	X
LGA4189	X	X	X	X	X
LGA4677	X	X	X	X	X
AM5	✓	Compatible but not recommended	✓	✓	✓
AM4	✓	Compatible but not recommended	✓	✓	✓
TR4, SP3, sTRX4, sWRX8	X	X	X	X	X
sTR5, SP6	X	X	X	X	X
