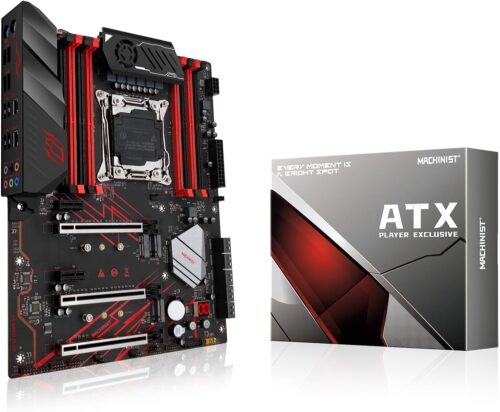

MACHINIST X99 Server Motherboard, LGA 2011-3 (Intel 5th/6th Gen) Computer Motherboards (C612 Chipset, ATX, PCIe 3.0, DDR4, NVME/SATA M.2, Dual LAN, SATA 6Gb/s) for Xeon E5 V3/V4, Core i7 MR9D
$129.99
Description
🌟 MACHINIST X99 Server Motherboard, LGA 2011-3 (Intel 5th/6th Gen) Computer Motherboards (C612 Chipset, ATX, PCIe 3.0, DDR4, NVME/SATA M.2, Dual LAN, SATA 6Gb/s) for Xeon E5 V3/V4, Core i7 MR9D – Your Perfect Choice!
🔥 Why Choose MACHINIST X99 Server Motherboard, LGA 2011-3 (Intel 5th/6th Gen) Computer Motherboards (C612 Chipset, ATX, PCIe 3.0, DDR4, NVME/SATA M.2, Dual LAN, SATA 6Gb/s) for Xeon E5 V3/V4, Core i7 MR9D?
✔ Brand: MACHINIST
✔ ASIN: B0C6Y2XLVZ
✔ Category: Electronics > Computers & Accessories > Computer Components > Internal Components > Motherboards
✔ Customer Rating: ⭐ 3.5 / 5
✨ Product Features & Benefits
Product Description
This is a C612 server chip high-performance motherboard, which has the highest configuration and the best quality.
This X99 motherboard has 8 DDR4 memory slots, which can use up to 256G of memory, plus 10 SATA 3.0 ports and dual M.2 ports, so you don’t have to worry about insufficient capacity at all.
Common problem: “FF” code appears on the diagnostic card, which may be caused by incompatible CPU, foreign objects on CPU pins or improper power connection. The metal fingers of the CPU can be wiped with an eraser to ensure cleanliness. If the codes “b7”, “b9”, “53” and “b0” appear, this is a problem that the motherboard does not detect the memory. You can remove and insert the memory several times or wipe the metal fingers of the memory with an eraser to solve it.
Installing Win 10 system can avoid many unnecessary troubles, and you can use the computer normally without downloading any drivers by yourself.
Note: If you need the motherboard to enter the BIOS, please press the “Del” key continuously after pressing the startup key. Please do not wait until the startup LOGO screen appears on the computer screen before operating, because it is already too late.
The necessary temperature control of the server motherboard can make your motherboard have a longer service life.
Usage Scenario
Usage included but not limited to:
High performance enthusiasts, games, audio and video, home, office, design, imaging, workstations, servers, scientific computing, 3D modeling, video rendering, big data computing, high-performance computing.
X99-MR9D ATX Motherboard Specification
Main chipset Intel C612 CPU socket Intel LGA 2011-V3 (Support Intel i7 XEON E5 V3/V4) Memory slot DDR4 ECC 4-channel (Support 3200/2800/2400/2133 MHz) Maximum memory 256GB PCI-E standard PCI-E 3.0 PCI-E slot 2 * PCIe 3.0 X16 slots, 1 * PCIe 3.0 X4 slots and 2 * PCIe 3.0 X1 slots. Storage interface 10 * SATA3.0, 1 * M.2 NVME, 1 * M.2 SATA and 1 * Wi-Fi M.2 Sort of USB supported 4 * USB3.0, 4 * USB2.0 Onboard LAN 2 * Gigabit LANs Power connector 24pin + 8pin Motherboard type ATX Overclock Support Material 8-layer PCB Motherboard size 244mm x303mm Other interfaces 2 * PS/2 interface, 7.1 channel audio Package list 1*CPU fan bracket, 2*SATA cable, 1*small radiator, 1*motherboard
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
3.0 out of 5 stars 10
3.7 out of 5 stars 197
3.7 out of 5 stars 197
3.7 out of 5 stars 197
3.7 out of 5 stars 197
3.7 out of 5 stars 197
Price
—
— $112.99$112.99 $105.99$105.99 $99.99$99.99 $84.99$84.99
Chipset Type
Intel C612 Intel B85 Intel B85 Intel B85 Intel C612 Intel B85/Q87
Available
235.99 139.99 132.99 121.99 119.99 99.99
Memory Slot
8 DDR4 Four channels( 2133/2400/2666/3000MHz) 8 DDR4 Four channels( 2133/2400/2666/3000MHz) 4 DDR4 Four channels( 2133/2666/3200MHz) 4 DDR4 Four channels( 2133/2666/3200MHz) 4 DDR4 Four channels( 2133/2666/3200MHz) 4 DDR4 Four channels( 2133/2666/3200MHz)
RAM Memory Maximum Size
256GB 256GB 128GB 128GB 64GB 64GB
CPU PIN
LGA 2011-V3 LGA 2011-V3 LGA 2011-V3 LGA 2011-V3 LGA 2011-V3 LGA 2011-V3
Extension Ports
4*PCIe 3.0 X16 2*PCIe 3.0 X16, 1*PCIe 3.0 X4 and 2*PCIe 3.0 X1 3*PCIe 3.0 X16, 1*PCIe 3.0 X4 and 1*PCIe 3.0 X1 2*PCIe 3.0 X16, 1*PCIe X4, 1*PCIe X1 1*PCIe 3.0 X16, 1*PCIe X1 1*PCIe 3.0 X16, 2*PCIe X1
Number of SATA
10*SATA 3.0 4*SATA3.0, 2*SATA2.0 4*SATA3.0, 2*SATA2.0 4*SATA3.0, 2*SATA2.0 8*SATA 3.0 4* SATA3.0
M.2 Interface
Dual NVME M.2 NVME M.2, SATA M.2 NVME M.2, SATA M.2 NVME M.2, SATA M.2 Dual NVME M.2 NVME M.2, SATA M.2
Overclocking
✓
✓
Model
E-ATX ATX ATX ATX Micro ATX Micro ATX
Standard LGA 2011-3 socket: C612 server chip motherboard is compatible with Intel 5th/6th generation Core i7 processors and Xeon E5 V3/V4 series processors. (Eg. E5-1680 V3, E5-2666 V3, E5-1650 V4, E5-2698 V4, i7-5960X, i7-6900K, etc.)
8 * DDR4 slots: The memory slots of this X99 motherboard are 4-channel design, compatible with ECC and non-ECC memory. The effective frequency is 2133/2400MHz, and the maximum capacity is 8*32GB

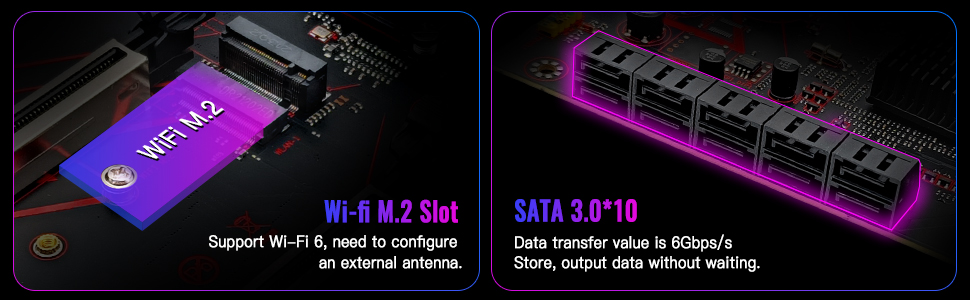

Dual M.2 slots: This ATX motherboard is equipped with flash NVME M.2 (PCIe 3.0 X4 bandwidth) and AHCI M.2 (SATA channel) slots, of which NVME M.2 maximum speed Up to 32Gbps
5 * PCIe Expansion Slots: The LGA 2011-3 motherboard is equipped with 2 * PCIe 3.0 X16 slots, 1 * PCIe 3.0 X4 slots(with steel casing) and 2 * PCIe 2.0 X1 slots. Each lane can support a rate of 8Gbps, and the rate of the X16 slot can reach 128Gbps. The 2 * X16 slots can be used together. The X1 slot can be used to expand the network card, sound card and hard disk
Other powerful components: 2 * gigabit LANs, which can be used to link the internal network and external network respectively to create a small server. One-key boot and one-key restart. VRM cooling fan. 7.1 channel audio. 10 * SATA 3.0 ports
The package includes: 1*CPU fan bracket, 1*SATA cable, 1*motherboard. All the information of this product can be found in the description and pictures. Manuals are not included in the package and can be downloaded from this page if needed. If you don’t know where to download the driver, it is recommended to use the win 10 system, which can help you solve all driver problems
Tip: Before purchasing this server board, make sure you can install it yourself. After the motherboard is installed normally, if there is no display, no boot, no picture, no network card, no sound card, etc. It is recommended that customers restore factory settings, reset CMOS, or use an eraser to erase the metal pins on the memory, CPU, or graphics card
Note: If you need the motherboard to enter the BIOS, please press the “Del” key continuously after pressing the startup key. Please do not wait until the startup LOGO screen appears on the computer screen before operating, because it is already too late
💡 Detailed Specifications:
| Product Dimensions | 9.45 x 11.93 x 1.65 inches |
|---|---|
| Item Weight | 3.23 pounds |
| Manufacturer | MACHINIST |
| ASIN | B0C6Y2XLVZ |
| Country of Origin | China |
| Item model number | X99-MR9D-PLUS V2 |
| Customer Reviews | 3.7 out of 5 stars |
| Best Sellers Rank | #550 in Computer Motherboards |
| Date First Available | June 2, 2023 |
