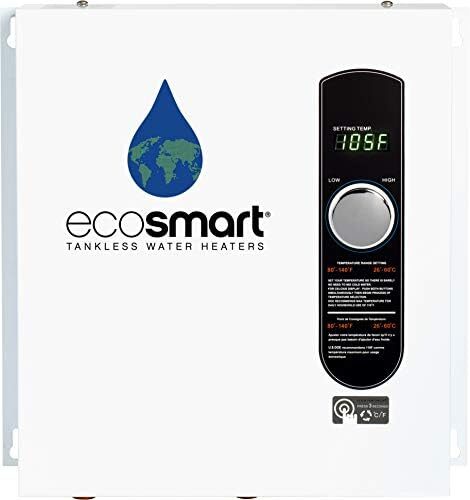

EcoSmart ECO 27 Tankless Water Heater, Electric, 27-kW – Quantity 1, 17 x 17 x 3.5

Configured for cold climates or high flow rates. Well suited where incoming water temperature can drop below 45 F. For use in more demanding water usage applications. Self modulating flow sensor technology regulates the amount of energy required to heat the water needed. Digital temperature display showing the outlet water temperature setting. Uses (3) 9 KW standard Emerson electric heating elements with brass tops to prevent electrolysis. Copper heat exchanger. Automatic resettable thermostat. (3) 40 DP breakers required. 112A draw. Required wire: 3 sets 8 AWG. Pipe fitting: 3/4” NPT. Energy efficiency: 99.8%. UL and CSA certified.Weight: 11 lb. It can provide between 2.7 and 6.5 gallons-per-minute depending on the inlet water temperature.
Save Space; EcoSmart tankless electric water heaters are 90% smaller than traditional tank heaters; may be installed on wall or at point of use; Dimensions 17 x 17 x 3.75 inches
Save Energy; EcoSmart tankless electric water heaters are 99% thermal energy efficient; Only heats water when called unlike a tank heater that maintains water temperature even when not being used. Save up to 50% in water heating costs according to the Department of Energy
EcoSmart ECO 27 Sizing; Refer to the sizing map. Requires 3×40 AMP Double Pole Breaker, 27-kilowatt tankless electric water heater ideal for providing hot water for whole home applications; provides between 2.7 and 6.5 gallons-per-minute depending on the inlet water temperature; refer to the sizing guide to select the proper solution
Warranty and Certifications; Limited Lifetime Warranty on electronics, exchanger and element; UL-499 certified; ETL Listed
Required Breaker Quantity: Three 40 Amp Double Pole
Recommended Electrical Panel: 200 Amps

Configured for cold climates or high flow rates. Well suited for areas where the incoming water temperature can drop below 45 F. Specifically designed for more demanding water usage applications. Utilizes self-modulating flow sensor technology to regulate the energy required to heat the water. Features a digital temperature display for easy control of the outlet water temperature. Equipped with (3) 9 KW standard Emerson electric heating elements with brass tops to prevent electrolysis. Built with a copper heat exchanger and automatic resettable thermostat. Requires (3) 40 DP breakers and a 112A draw. Wiring required: 3 sets 8 AWG. Pipe fitting: 3/4” NPT. Boasts an energy efficiency rating of 99.8%. UL and CSA certified. Weighs 11 lb. Provides a water flow rate between 2.7 and 6.5 gallons-per-minute depending on the inlet water temperature.

Save Space; EcoSmart tankless electric water heaters are 90% smaller than traditional tank heaters. Can be easily installed on a wall or at the point of use. Dimensions: 17 x 17 x 3.75 inches.

Save Energy; EcoSmart tankless electric water heaters are 99% thermal energy efficient. Unlike tank heaters that constantly maintain water temperature even when not in use, they only heat water when needed. This can result in up to 50% savings in water heating costs, according to the Department of Energy.

EcoSmart ECO 27 Sizing; Please refer to the provided sizing map. This tankless electric water heater requires three 40 AMP double pole breakers. It has a power output of 27 kilowatts, making it ideal for providing hot water for whole home applications. The water flow rate ranges from 2.7 to 6.5 gallons-per-minute depending on the inlet water temperature. Consult the sizing guide to ensure the correct solution for your needs.

Warranty and Certifications; Comes with a limited lifetime warranty on electronics, exchanger, and element. It is UL-499 certified and ETL Listed.

Required Breaker Quantity: Three 40 Amp Double Pole

Recommended Electrical Panel: 200 Amps
